CNC Portal Milling Machine, 2100 x 1000 mm (2.10 m x 1 m), Bosch Rexroth

3,500.00 EUR

Status: Available

BOSH REXROTH Y-axis guides in 25" sizes, X and Z axes in 20" sizes
Ball screws for the X and Y axes, size 20x10

Stepper motors:
Y-axis 6.0A (8.7Nm)
X-axis 6.0A (4.5Nm)
Z-axis 4.2A (3Nm)

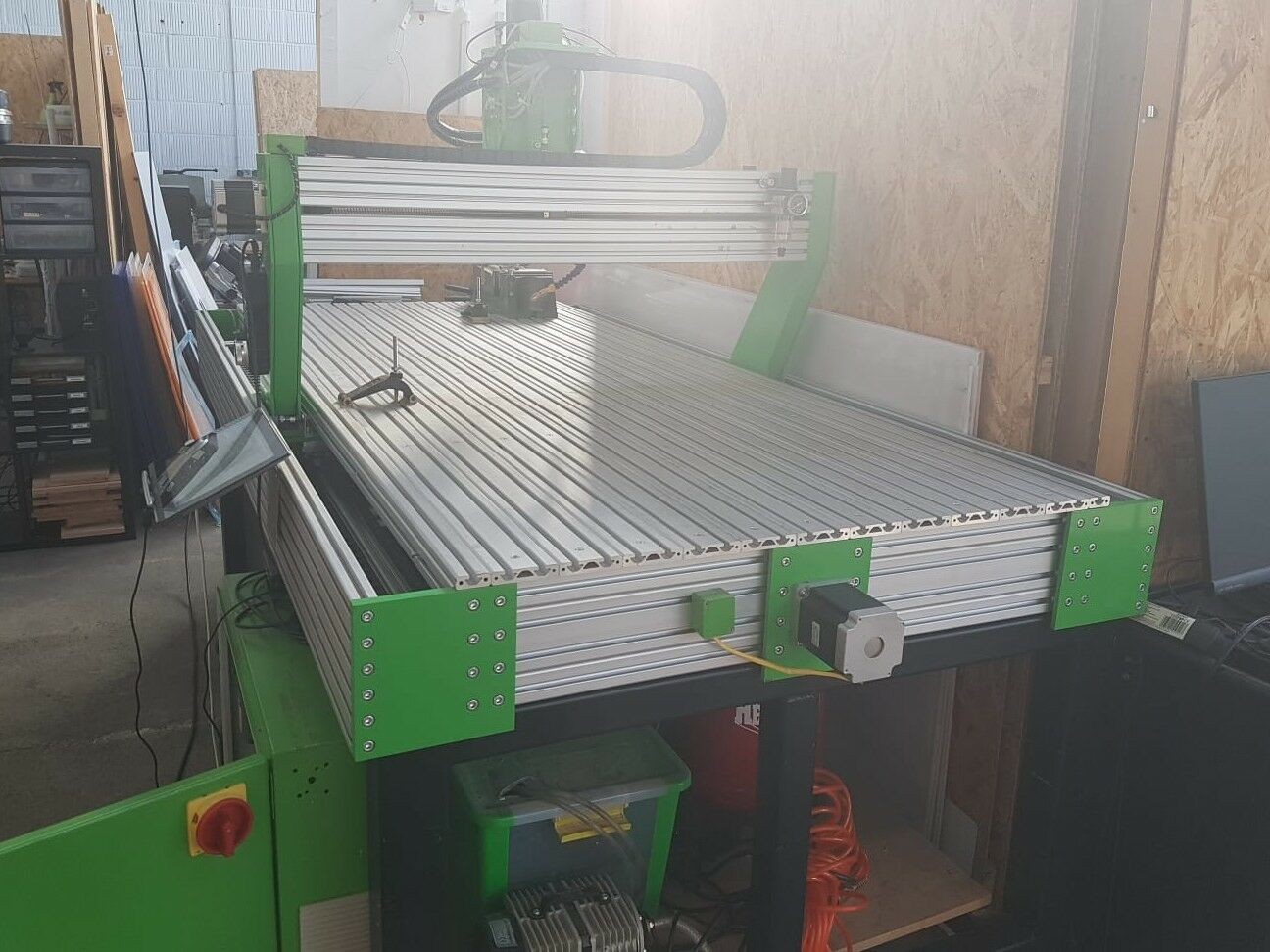

Table dimensions: L x W 2100 x 960 mm
Clearance: 250 mm
Overall dimensions with motors (L x W x H): approx. 2100 x 1200 x 1800 mm

Includes:

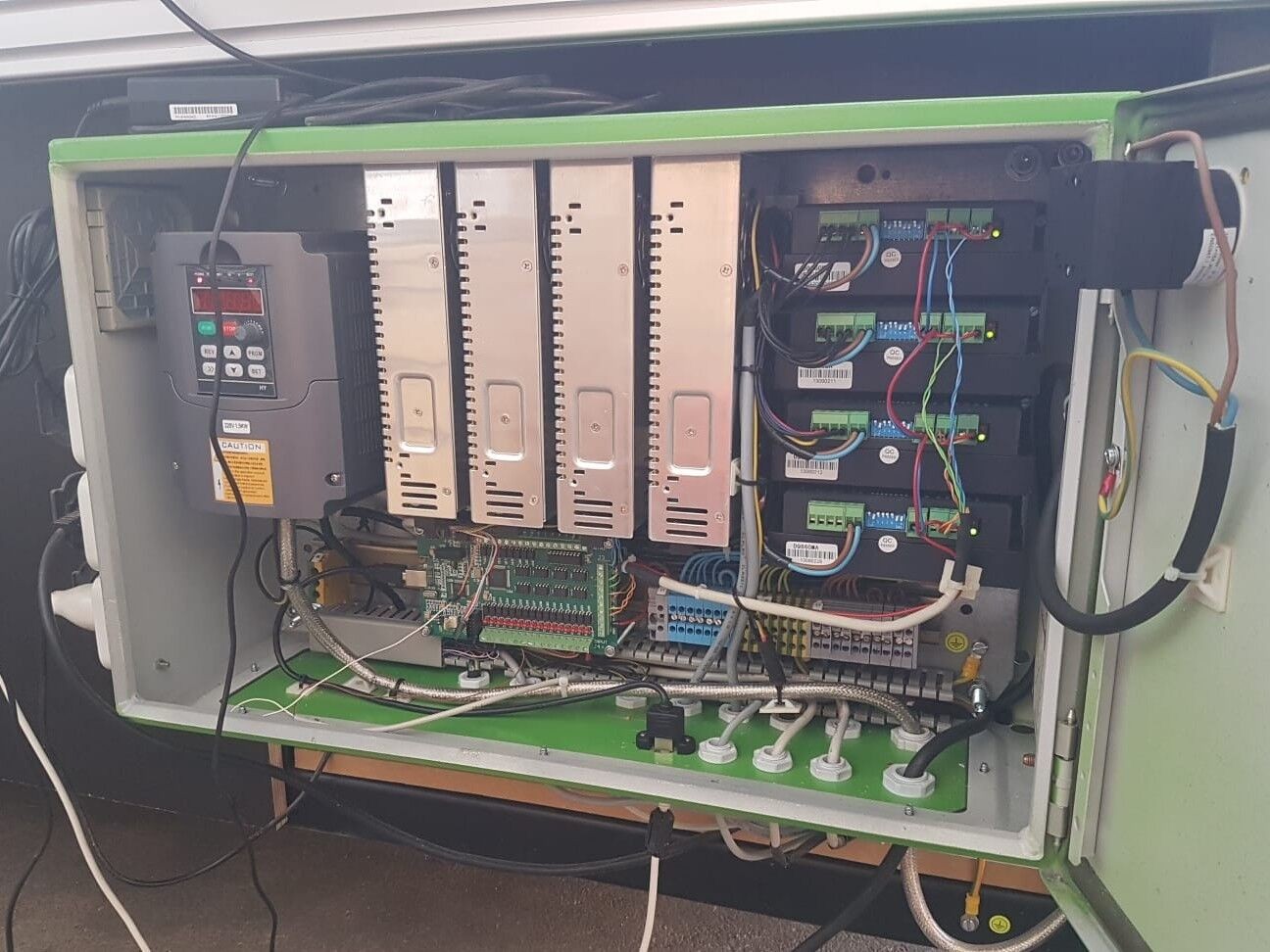

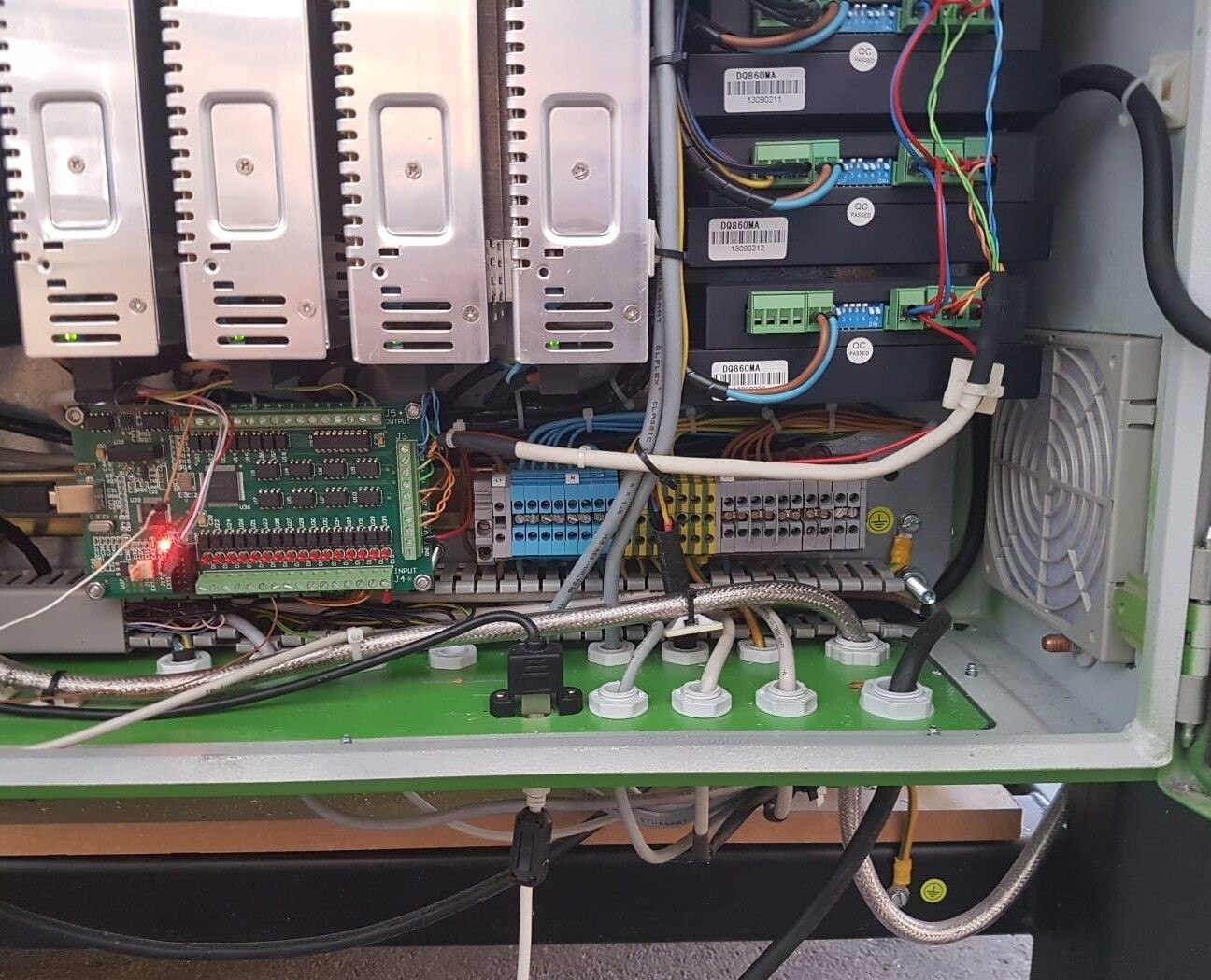

Compact control cabinet

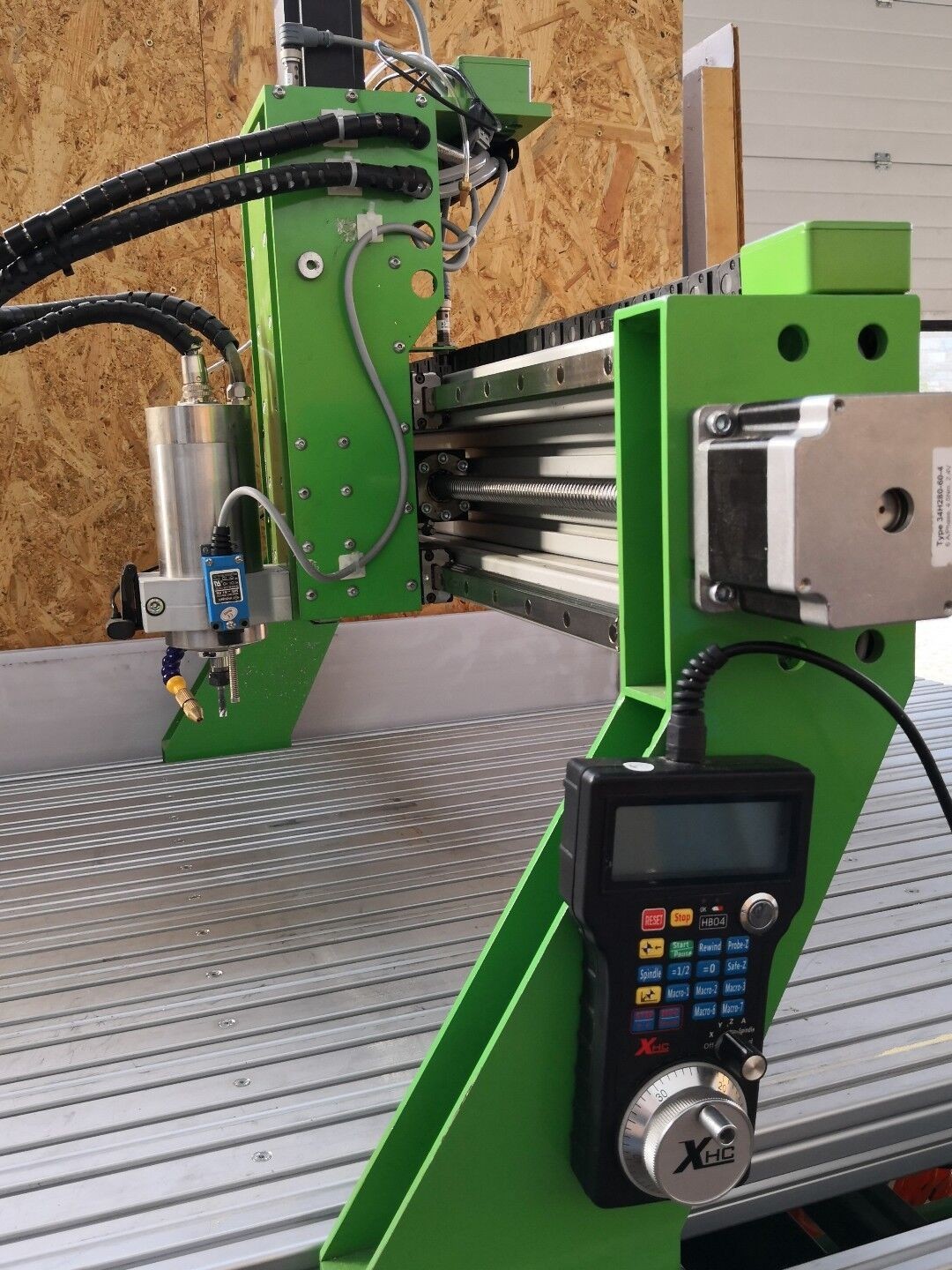

Handwheel
Fully wired
Motors and controller
Power supplies

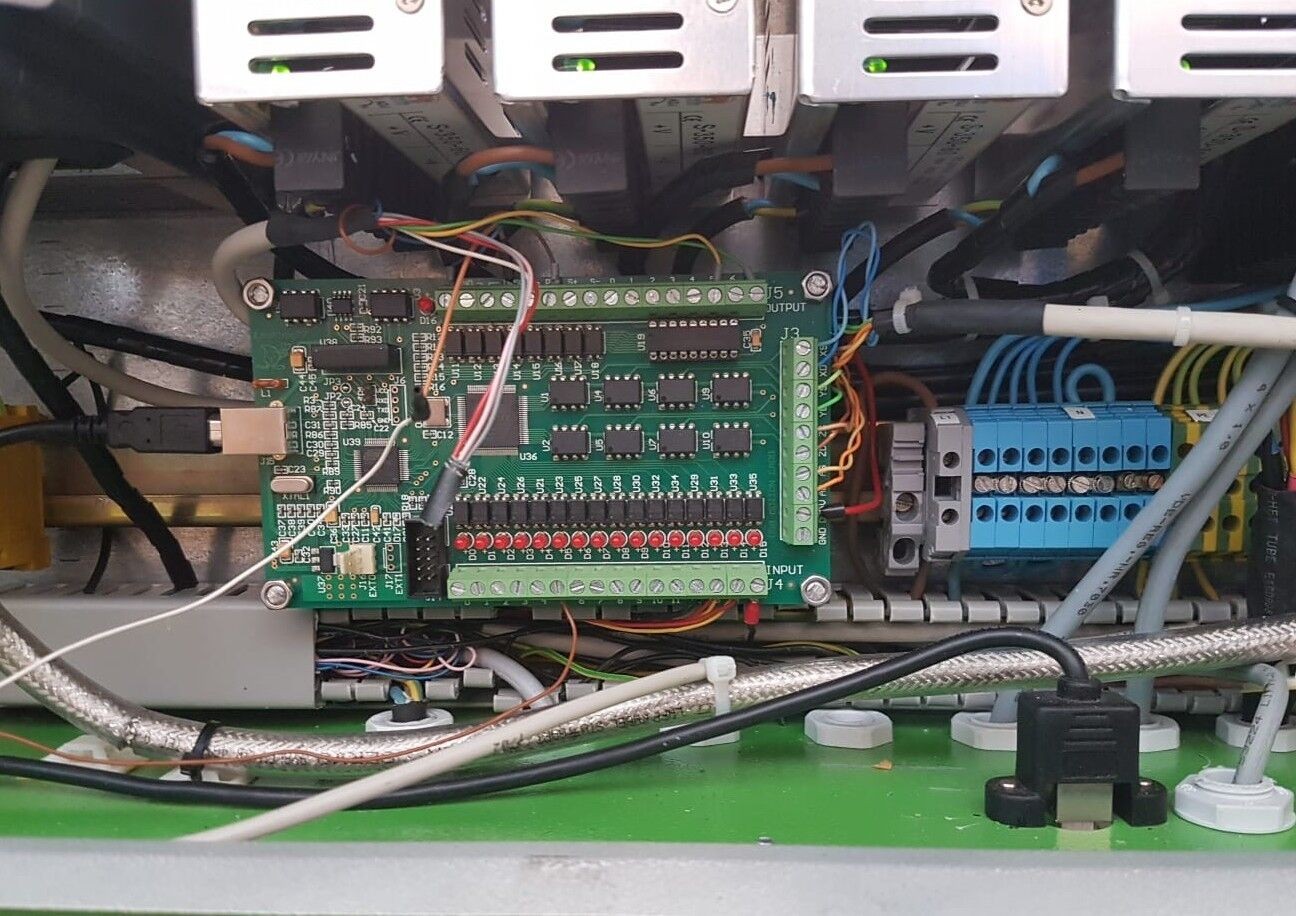

Main control board
Drive motor

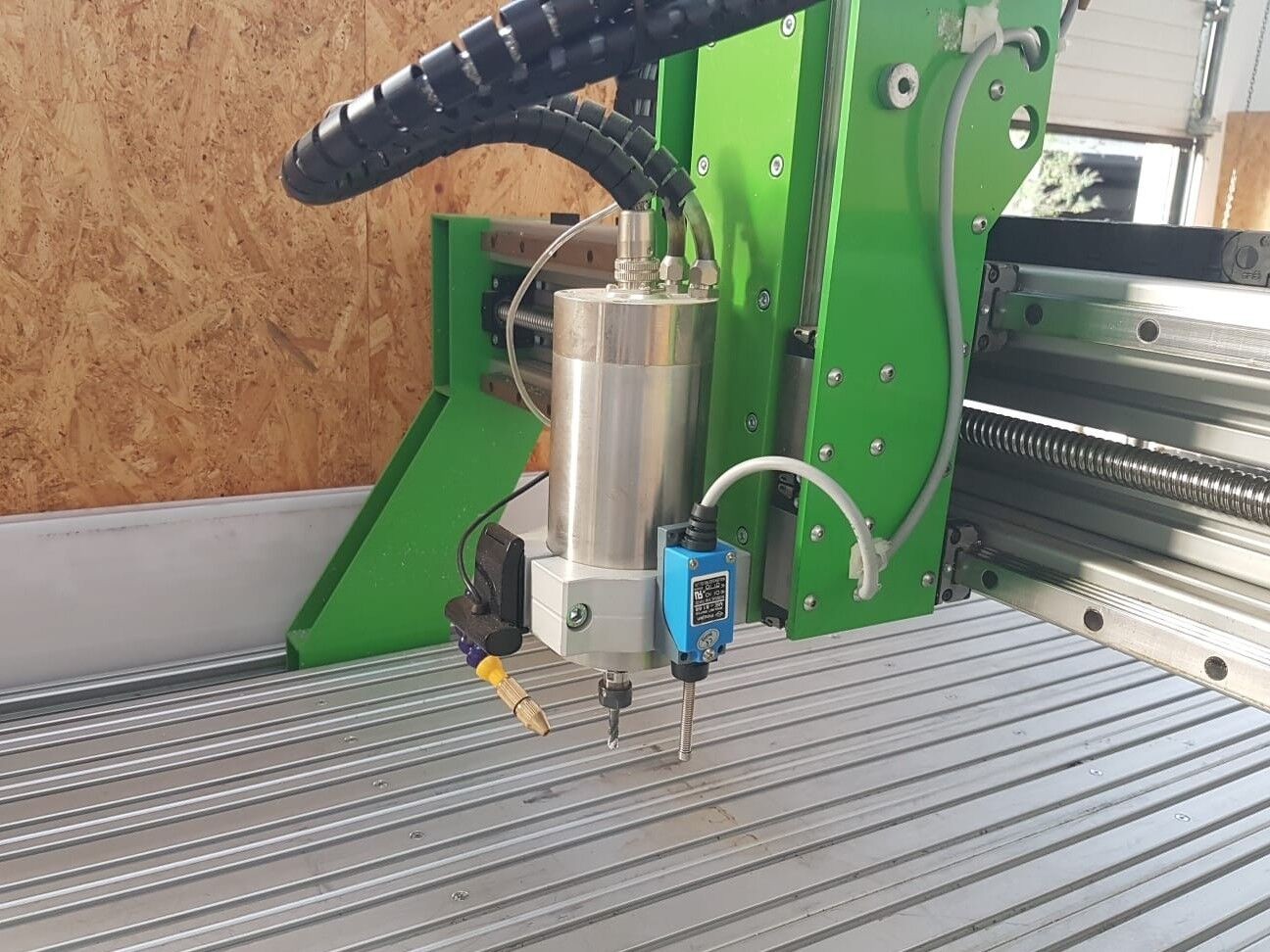

Spindle motor 2.2 kW
Water cooling, pump, hoses, tank
Altitude sensor
Air cooling, pump, hoses
